VLANs

network VLANs

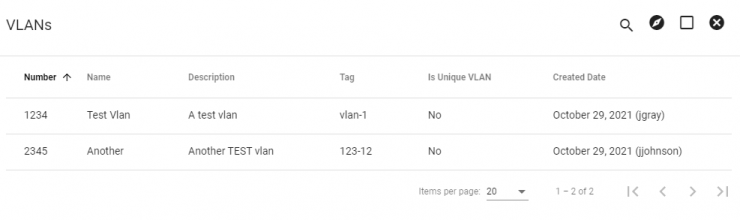

View, edit or add VLANs and their associated IP assignments and pools. VLANs have the ability to separate traffic on the same network, or to group traffic on different networks as if they were on the same network.

View VLAN

Click on a VLAN to view more details. Select the close.svg next to the description to remove the VLAN.

Click on an IP assignment or IP pool to view details about the specific IP information. Select the close.svg next to the IP assignment or pool to remove.

Screenshot 2024-04-09 143148.png

Edit VLAN

Click on the create-24px.svg next to the VLAN description to edit the VLAN. Select on SUBMIT to save any changes.

Screenshot 2024-04-09 142633.png

Add VLAN

Click on the plus-circle (1).svg icon in the bottom right hand corner of the main VLAN page to add a new VLAN.

Enter the number, name, description, tag and choose an option from the drop-down menu to indicate if the VLAN is unique.

Select ADD VLAN to add the VLAN.
